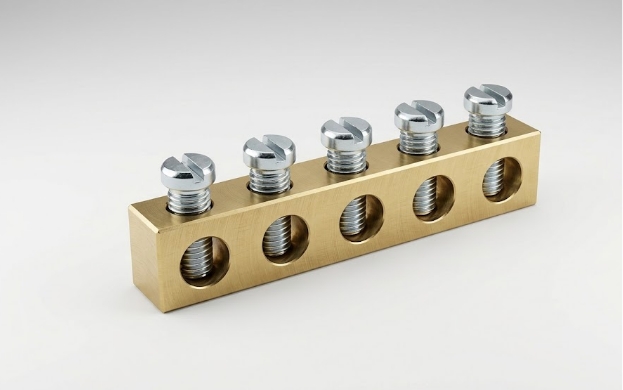

Brass Neutral Links & Neutral Bars
Terminal bars and neutral links for electrical applications, offered in standard sizes or manufactured to customer specifications.
Electrical Components
Product overview
Terminal bars and neutral links for electrical applications, offered in standard sizes or manufactured to customer specifications.
- Standard and custom cross-sections
- Multiple pitch and thread configurations
- Suitable for electrical terminal and distribution assemblies
Series / codeMIN Series
Standard / referenceCustomer specification
Technical data
Dimensions & product references
Dimensions are presented from the legacy product catalogue and should be reconfirmed against the final order specification.
| Cross-section (mm) | Cross-hole Ø | Pitch | Thread | Product code |
|---|---|---|---|---|
| 9 × 7 | 5.6 | 8.0 | M5 | MIN 97 |
| 11 × 8 | 6.0 | 7.5 | M5 | MIN 118 |
| 11 × 8 | 7.0 | 8.5 | 1/4" UNF | MIN 1188 |
| 12.7 × 7.0 | 7.0 | 8.5 | 1/4" UNF | MIN 1278 |
| 12.7 × 12.7 | 7.0 | 8.5 | 1/4" UNF | MIN 1212 |
01
Confirm application
Share cable type, armour details, thread, ingress requirement and operating environment where relevant.
02
Confirm specification
Specify size, material, finish, quantity, drawing and any inspection requirement.
03
Receive quotation
The commercial and technical review can then be completed against the requested configuration.
Technical enquiry
Need this product in a specific size or finish?
Send the product series, dimensions, material, quantity and delivery location.
